Motor Control Centers (MCCs) are essential electrical systems used to manage and protect electric motors in industrial and commercial applications. They ensure efficient motor operation, enhance safety, and streamline maintenance. MCCs are classified into Fixed Type MCCs and Draw-out Type MCCs, each designed to meet specific operational requirements.

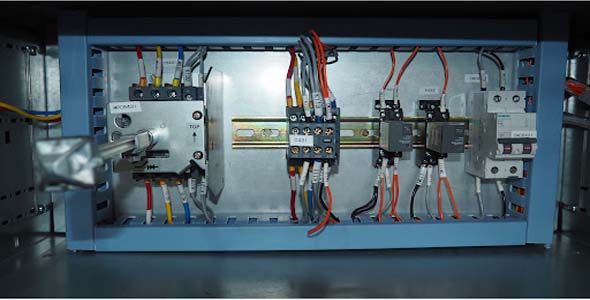

Fixed Type MCCs consist of permanently mounted motor control units that are bolted directly into the panel structure. These are widely used in applications where frequent modifications or replacements are not required.
✔ Cost-Effective – More affordable compared to draw-out MCCs.
✔ Compact Design – Takes up less space, making it ideal for constrained areas.
✔ Simplified Installation – Requires minimal structural components.
✔ High Durability – Robust construction ensures long-lasting performance.
✔ Reliable Operation – Offers continuous and stable motor control.
🔹 Industrial Manufacturing Plants
🔹 Water & Wastewater Treatment Facilities
🔹 Commercial Buildings
🔹 Power Generation Stations
🔹 Oil & Gas Facilities
✅ Lower Initial Cost – More economical for standard applications.
✅ Reduced Maintenance – Less complex structure with fewer moving parts.
✅ Minimal Downtime – No need for frequent replacements or modifications.
Draw-out Type MCCs feature motor control units that can be easily inserted and removed without disconnecting the entire system. These are preferred in industries requiring flexibility, quick maintenance, and minimal downtime.
✔ Modular Design – Allows easy addition or replacement of units.
✔ Quick Maintenance – Individual units can be serviced without shutting down the entire MCC.
✔ Enhanced Safety – Equipped with isolating mechanisms to prevent electrical hazards.
✔ High Customization – Suitable for complex industrial automation systems.
✔ Advanced Monitoring – Can integrate with remote monitoring and automation systems.
🔹 Large-Scale Manufacturing Facilities
🔹 Power Plants & Substations
🔹 Data Centers & IT Infrastructure
🔹 Oil & Gas Processing Plants
🔹 Heavy Machinery Operations
✅ Reduced Downtime – Allows replacement of faulty units without affecting other operations.
✅ Improved Flexibility – Easy to modify and upgrade based on evolving requirements.
✅ Enhanced Safety & Protection – Better isolation reduces risks during maintenance.
✅ Smart System Integration – Supports automation, remote monitoring, and diagnostics.
| Feature | Fixed Type MCCs | Draw-out Type MCCs |
|---|---|---|
| Design | Permanently fixed motor control units | Removable motor control units |
| Cost | Lower | Higher |
| Flexibility | Less adaptable to modifications | Easily modified or upgraded |
| Maintenance | Requires system shutdown for servicing | Individual units can be serviced independently |
| Safety | Standard safety features | Enhanced isolation and safety mechanisms |
| Best for | Small to medium-sized facilities | Large industries with critical operations |
🔹 High-Quality Components – Built with top-tier materials and latest safety standards.
🔹 Customization Options – Tailored solutions to meet specific industry requirements.
🔹 Reliable Performance – Designed for long-lasting efficiency and durability.
🔹 Expert Support – Professional consultation, installation, and after-sales service.
🔹 Competitive Pricing – Cost-effective solutions for both standard and advanced MCCs.
